Milwaukee 2216-20 Digital Multimeter

Description

Milwaukee 2216-20 Digital Multimeter

The Milwaukee 2216-20 Digital Multimeter includes:

• 1 – Electrical test lead set
• 2 – AA batteries

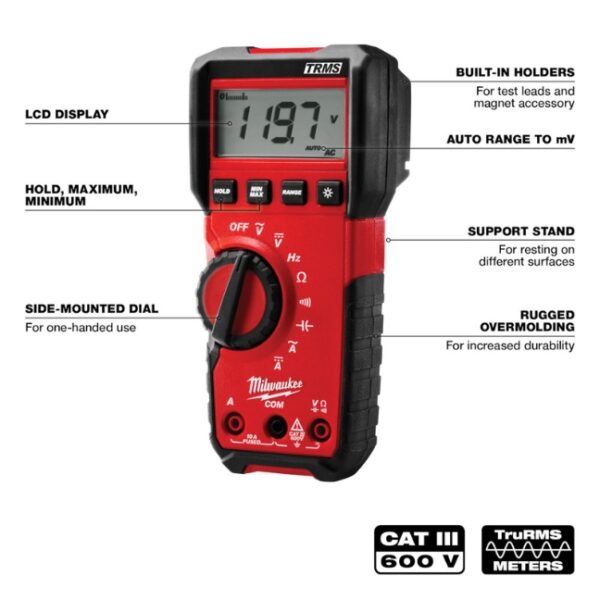

Features:

• Product no. 2216-20
• A True-RMS electrical tester for accurate measurement in all applications
• Measures current up to 10 amps AC/DC
• Measures wide voltage range up to 600 volts AC/DC
• Easy-read high contrast, white-on-black LCD display with backlight
• Durable over-molding increases user grip
• Runs on AA alkaline batteries

Specifications:

• AC Voltage range: 6.00mV to 600V
• DC Voltage range: 600.0mV to 600V
• Current: 10.00A AC/DC
• Safety rating: CAT III 600V
• Frequency: 2.00 Hz to 50.00 kHz
• Resistance: 40 MΩ
• Continuity: Audible (detected at less than 30 ohms)
• Capacitance: 1,000μF
• HOLD/MIN/MAX: yes
• Bar graph readout: yes
• Accessory attachment: Magnetic meter holder
• Calibration needed: Yes – calibration service recommended once a year
• Switch type: Dial
• Length: 6-1/2″”
• Tool warranty: 5 years
