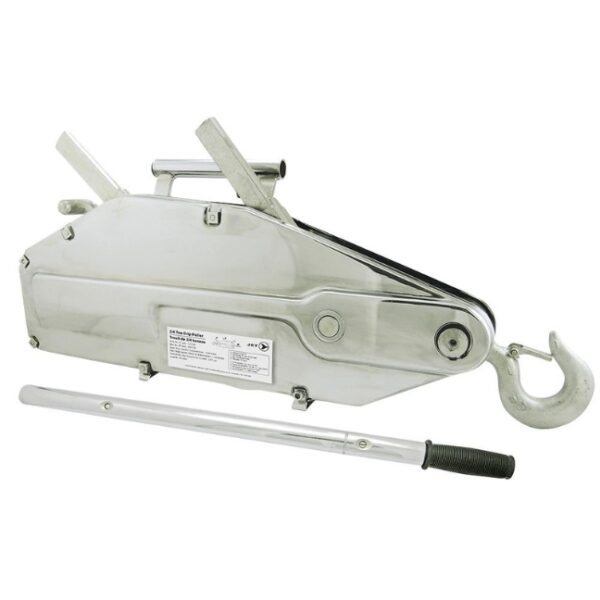

Jet 111136 3/4 Ton SUMO Series Grip Puller – Heavy Duty

Jet 111136 3/4 Ton SUMO Series Grip Puller - Heavy Duty

$444.92

SKU: 111136 Categories: ,

Product Description

Jet 111136 3/4 Ton SUMO Series Grip Puller – Heavy Duty

  • Model no. SGP-75A
  • Made with a compact, high strength steel housing
  • Engineered to be light weight as well as simple and safe to operate
  • Use in any position to lift, pull, lower or stretch heavy loads
  • Rope clamp system disengages easily with a lever, allowing smooth installation of wire rope
  • Built-in overload protection with a shear pin in the forward lever (shear pin breaks when overloaded)
  • Broken shear pins can be replaced without removing the load
  • Spare shear pins are conveniently stored in the rubber sleeve of the telescopic handle
  • Wire rope can be fed through 2 sets of wear-resistant interlocking jaws by a single operating lever
  • Parallel clamping system with a large surface contact area provides an evenly distributed grip at a lower force for less rope wear and maximum safety
  • Parallel clamping system increases operator efficiency by providing a longer rope advance requiring less handle pulling effort
  • All SGP Wire Rope Pulling Hoists are tested and have individual serial numbers for easy traceability to a test certificate (included)
  • Meets ANSI B30.21 standards (certificate included)

Uses standard ASA and IWRC wire rope (not included) – see cable assembly chart below

JBC Series Beam Clamp Specifications and Comparison Chart
Product no. Model no. Rated Lifting Capacity (tons) Rated Lifting Capacity (lbs) Rated Pulling Capacity (tons) Rated Pulling Capacity (lbs) Dimensions
111136 SGP-75A 3/4 1,760 1.4 2,860 16-3/4″ x 2-1/2″ x 9″
111137 SGP-150A 1-1/2 3,520 2.8 5,720 21-1/2″ x 3-3/4″ x 10-1/4″
111138 SGP-300A 3 7,040 5.7 11,440 26″ x 4-1/2″ x 12-1/2″

Product no. Model no. Standard Wire Rope Diameter Operating Rope Advance Effort at Rated Load (lbs) Telescopic Handle Length Weight lbs (kg)
111136 SGP-75A 5/16″ 2.36″ 64 29″ 39.7 (18)
111137 SGP-150A 7/16″ 2.36″ 93 44″ 45.2 (20.5)
111138 SGP-300A 5/8″ 1.57″ 99 44″ 71.6 (32.5)



Cable Assemblies (wire rope) for Wire Rope Pullers – Selection Chart
Product no. Model no. Wire Size Wire Rope Length Fits Product no. Weight lbs (kg)
111152 SGP-75A 5/16″ 66 ft. 111136 6.6 (3)
111153 SGP-150A 7/16″ 66 ft. 111137 27.7 (12.6)
111154 SGP-300A 5/8″ 66 ft. 111138 54.7 (24.8)
111162 SGP-75A 5/16″ 100 ft. 111136 25.5 (11.6)
111163 SGP-150A 7/16″ 100 ft. 111137 28.3 (12.9)

Cable assemblies must be ordered separately.

Additional Information

Weight 23.29 lbs
Brand Name

Jet Equipment and Tools
